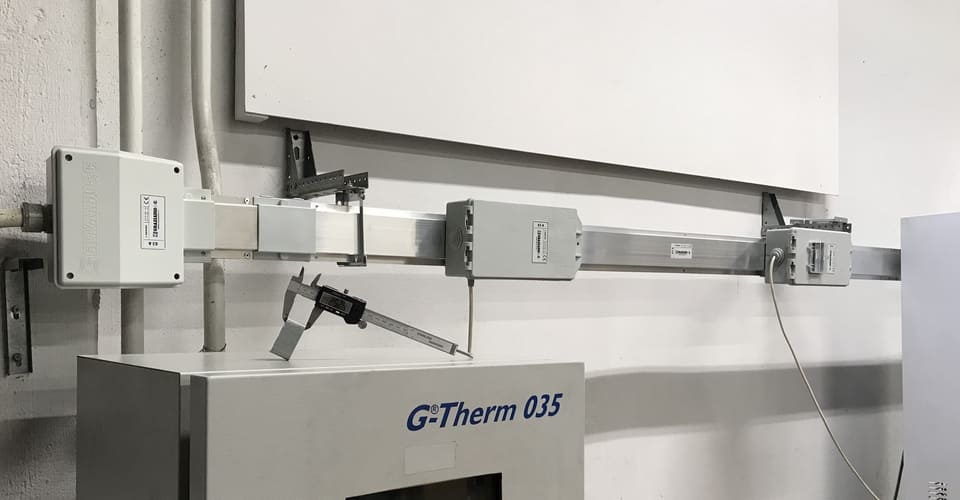

The Graziadio J SERIES busbars, with aluminium or copper conductors, are available in 63, 100 and 160 A ratings, in five-conductor execution with dedicated PE. They are ideal for use in all areas where small power needs to be supplied with branch outlets. The tap-off boxes, available with 32 and 63 A, can be easily removed or relocated, allowing more flexibility and lower installation costs.

Technical Features

• Quick-connect junction
• Configurations: 5P
• Element lengths: 3 m and 1 m
• Distance between branch points: 1 m / 0.5 m
• Tap-off boxes: 32 A – 63 A with fuse holder or prepared for 4-8-12-16 module switch (light, robust and design)
• Degree of protection: up to IP55
• Non-accessible live parts
• Advantages: corrosion resistance; quick and easy assembly; high thermal dissipation; light weight and small dimensions; reusable and recyclable; double omega profile with reinforcing ribs; quick-connect coupling
