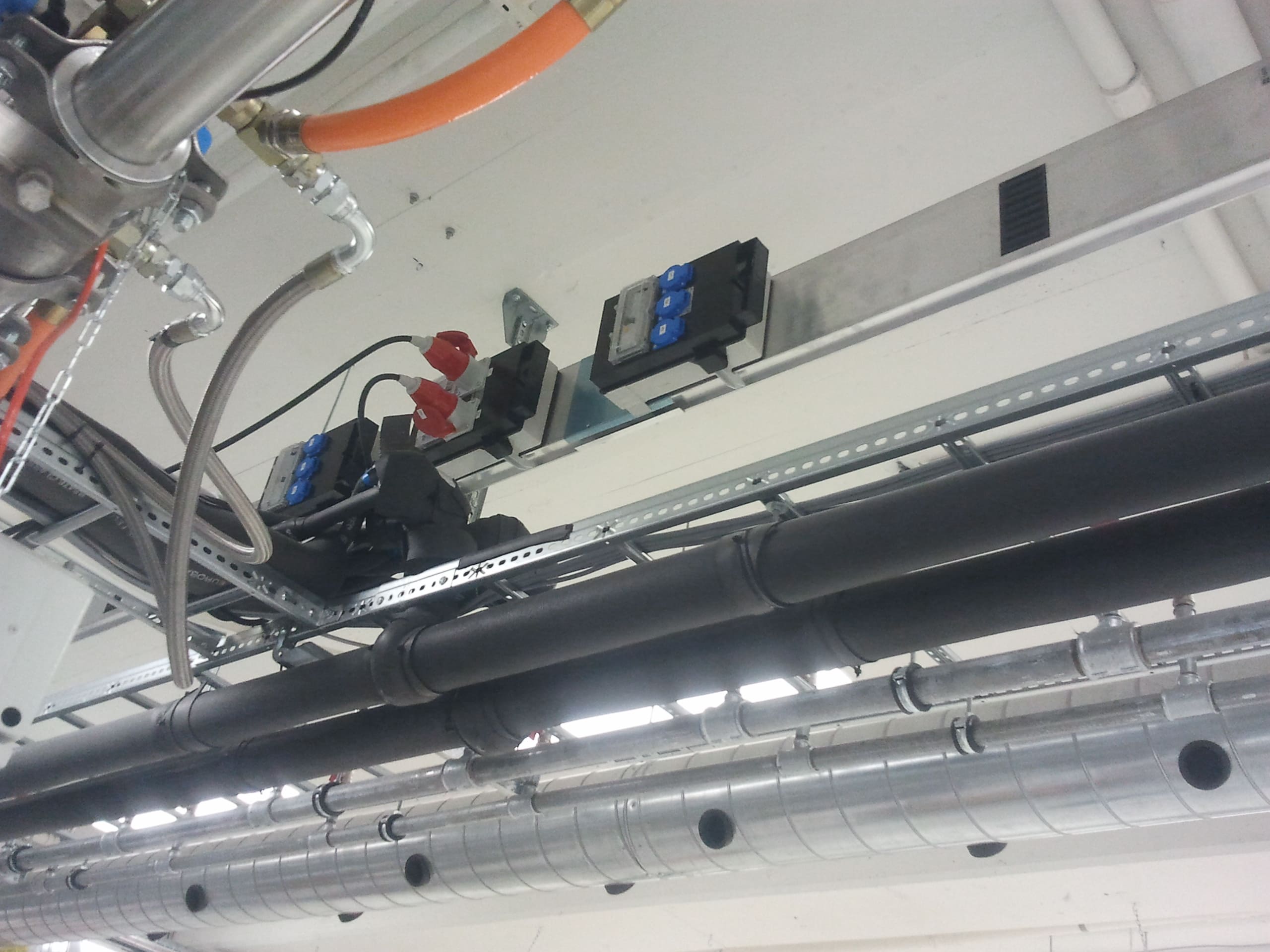

Graziadio GDA busbars with aluminum or copper conductors, available from 63 A to 2500 A, are ideal for use in factories, factories and many other sectors where it is necessary to provide junction outputs, or where flexibility is required in moving machinery without additional costs. installation. Quick and easy compared to the cable system. The GDA busbar lines can also be installed vertically: the bars are installed through the floor and, for each floor, there is a branch that feeds the panels. The range of tap off boxes starts from 32 up to 1250 A.

Technical Features

• Monoblock junction
• Configurations: 4P + PE; 5P + PE
• Available Neutral cross section equal to 200% of Phase section
• Length of the elements: 4 m and any customized length
• Distance between plug-in points: 1 m / 0.5 m / 0,25 m
• Use in same moment of opposite side plug-in points
• Tap off boxes: 32 to 1250 A (light, robust and design)
• Degree of protection: up to IP55
• Live parts not accessibles
• Advantages: corrosion resistance; fast and easy to assembly; high thermal dissipation; lightness; reusable and recyclable, high heat dissipation that allows installation in environments with little air circulation.
